SKY型 孔轴通用Y型密封圈
特性：最受欢迎常用的液压油缸用密封圈,广泛用于活塞和活塞杆密封

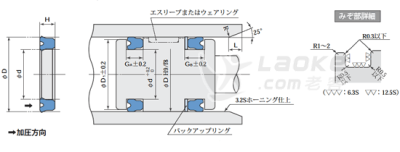

可以安装在整体沟槽内,可通过减少用量和紧凑性来降低成本.
材质:日本丁晴胶RN906,使用温度-10℃~+100℃. （瞬间温度100℃.，工作常温70℃.多作用）如用耐热材料氟胶可以在-5~+150℃.
工作压力:≤25Mpa,最大线速度 1M*2.5s.
适用流体:一般石油系液压油,水-,水-油乳系工作油
主要用途:标准油缸,低压油缸,机械加工机床和工程车辆用油缸.
d D H 標準 耐熱用 耐寒用
（RN 906） （RF 905） （RN 903）
（RF 907）
10 18 5 SKY-0010001N906
12 20 5 SKY-0012001N906
12.5 20 5 SKY-12.5
14 22 5 SKY-14 SKY-14F
16 24 5 SKY-16 SKY-16F
17 25 5 SKY-0017001N906
18 26 5 SKY-18 SKY-18F
20 28 5 SKY-20 SKY-20F SKY-20N
20 30 6 SKY-0020001N906
22 30 5 SKY-22 SKY-22F
22.4 30 5 SKY-22.4 SKY-22.4F
23.5 31.5 5 SKY-23.5 SKY-23.5F
24 32 5 SKY-0024002N906
25 33 5 SKY-25 SKY-25F SKY-25N
26 34 5 SKY-0026001N906
27 35 5 SKY-0027001N906
28 35.5 5 SKY-28 SKY-28F SKY-28N
28 36 5 SKY-28A
30 38 5 SKY-0030001N906
30 40 6 SKY-30 SKY-30F SKY-30N
31.5 41.5 6 SKY-31.5 SKY-31.5F
32 42 6 SKY-32
35 45 6 SKY-35 SKY-35F SKY-35N
35.5 45 6 SKY-35.5 SKY-35.5F SKY-35.5N
35.5 45.5 6 SKY-35.5A
36 46 6 SKY-36 SKY-36F
38 48 6 SKY-0038001N906
40 50 6 SKY-40 SKY-40F SKY-40N
45 55 6 SKY-45 SKY-45F SKY-45N
45 56 7 SKY-45A SKY-45AF SKY-45AN
50 60 6 SKY-50 SKY-50F SKY-50N
53 63 6 SKY-53 SKY-53F
55 65 6 SKY-55 SKY-55F SKY-55N
56 66 6 SKY-56 SKY-56F
58 68 6 SKY-0058001N906
60 70 6 SKY-60 SKY-60F SKY-60N
60 71 7 SKY-60A SKY-60AF
61 71 6 SKY-0061001N906
63 73 6 SKY-63 SKY-63F SKY-63N
65 75 6 SKY-65 SKY-65F SKY-65N
67 77 6 SKY-67 SKY-67F
70 80 6 SKY-70 SKY-70F SKY-70N
71 80 6 SKY-71 SKY-71F
75 85 6 SKY-75 SKY-75F SKY-75N
80 90 6 SKY-80 SKY-80F SKY-80N
85 95 6 SKY-0085002N906
85 100 9 SKY-85 SKY-85F SKY-85N
86 100 8.5 SKY-86 SKY-86F
89 104 9 SKY-0089001N906
90 100 6 SKY-0090001N906
90 105 9 SKY-90 SKY-90F SKY-90N
95 110 9 SKY-95 SKY-95F
96 111 9 SKY-0096001N906
98 112 8.5 SKY-98 SKY-98F
100 115 9 SKY-100 SKY-100F SKY-100N
105 120 9 SKY-0105002N906
106 120 8.5 SKY-106 SKY-106F SKY-106N
110 125 9 SKY-0110003N906
112 125 8.5 SKY-112 SKY-112F
112 125 9 SKY-112A SKY-112AF
115 130 8.5 SKY-0115002N906 SKY-0115001N903
118 132 8.5 SKY-118 SKY-118F SKY-118N
119 133 8.5 SKY-0119001N906
120 135 9 SKY-0120002N906
125 140 9 SKY-125 SKY-125F SKY-125N
130 145 9 SKY-0130001N906
132 145 8.5 SKY-132 SKY-132F
136 150 8.5 SKY-136 SKY-136F
140 155 9 SKY-140 SKY-140F
145 160 9 SKY-145 SKY-145F SKY-145N
150 165 9 SKY-150 SKY-150F
155 170 9 SKY-155 SKY-155F
160 175 9 SKY-160 SKY-160F
165 180 9 SKY-165 SKY-165F
170 185 9 SKY-0170001N906
175 190 9 SKY-175 SKY-175F
180 200 12 SKY-180 SKY-180F
185 205 12 SKY-0185001N906
190 210 12 SKY-0190003N906 SKY-0190001F905
195 215 12 SKY-0195001N906
200 220 12 SKY-200 SKY-200F
204 224 12 SKY-204 SKY-204F
210 230 12 SKY-0210002N906 SKY-0210001F905
215 235 12 SKY-0215001N906
220 240 12 SKY-0220001N906
224 244 12 SKY-224 SKY-224F
230 250 12 SKY-230 SKY-230F
235 255 12 SKY-0235001N906
237 257 12 SKY-0237001N906
240 260 12 SKY-0240003N906 SKY-0240001F905
245 265 12 SKY-0245001N906
250 270 12 SKY-250 SKY-250F
260 280 14 SKY-260 SKY-260F
280 300 14 SKY-280 SKY-280F
290 310 14 SKY-0290001N906
295 315 14 SKY-295 SKY-295F
300 320 12 SKY-0300003N906
310 330 14 SKY-0310001N906
315 335 14 SKY-315
335 355 14 SKY-335
355 375 14 SKY-355
380 400 14 SKY-380 SKY-380F
400 420 14 SKY-400
430 450 14 SKY-430
450 470 14 SKY-450
480 500 14 SKY-480
500 525 17 SKY- 0500001N906
540 560 14 SKY- 0540001N906
550 570 13 SKY- 0550001N906
610 630 14 SKY- 0610001N906
630 655 17 SKY- 0630001N906
660 690 18 SKY- 0660001N906
770 800 18 SKY- 0770001N906
